Öhlins Road & Track Coilover BMW 1-/2-/3-/4-series (F/G) incl. xDrive
Öhlins Road & Track Coilover BMW 1-/2-/3-/4-series (F/G) incl. xDrive
SKU:BMSMU00S1
A more than 40 year long tradition of high-end racing commitments and state-of-the-art solutions within advanced suspension technology is now available for street cars all over the world. The focus has been clear from the very beginning – superior road handling without sacrificing comfort in your day-to-day transports. The time of compromises is over. All shocks have suffered through vast corrosion tests according to ISO 9227. The end result is a worldwide 2-year limited warranty on all of our products.
General Features:
- DFV technology (Dual Flow Valve)
- Individual height adjustment
- Rebuildable
- Corrosion salt spray tested (ISO 9227)
- 2 year warranty

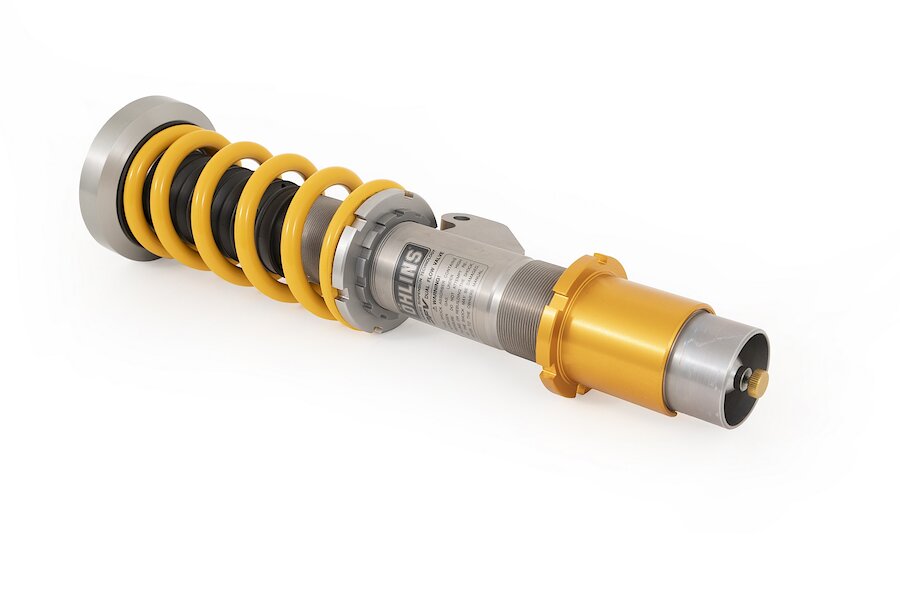

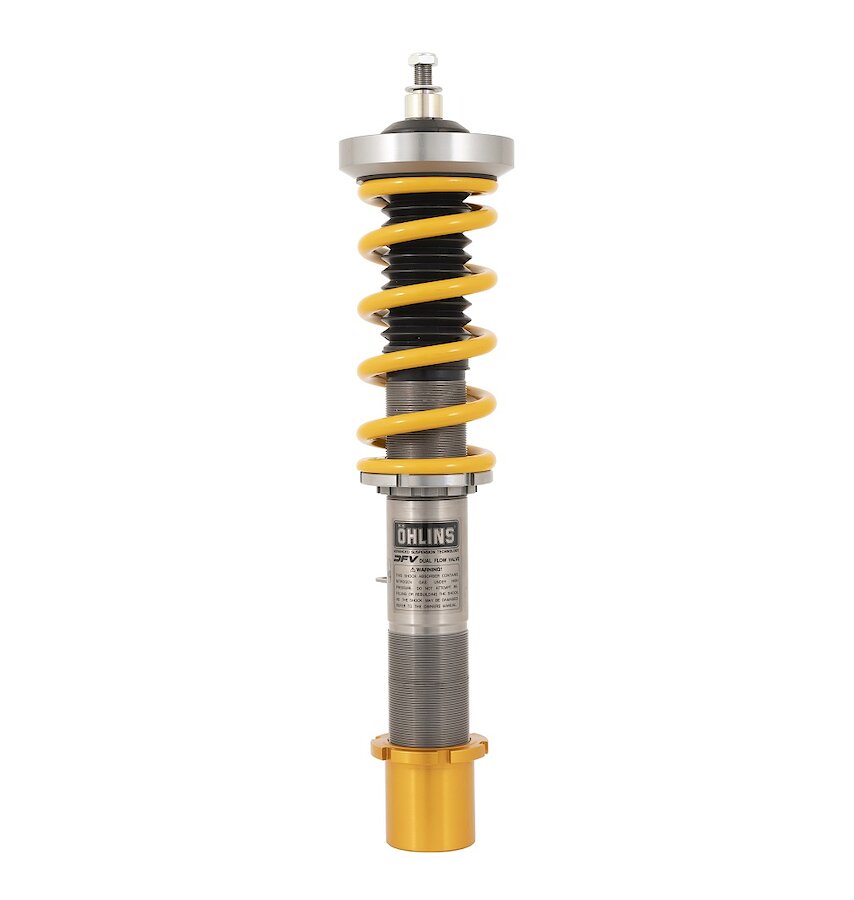

Features Front:
- McPherson strut, upside down
- Compression and rebound damping with one adjuster
- Spring preload adjuster
- Separate ride height adjustment
- Approx. 20 - 30 mm lower than standard with recommended setup
- Spring rate 80 N/mm
- Use with original top mounts

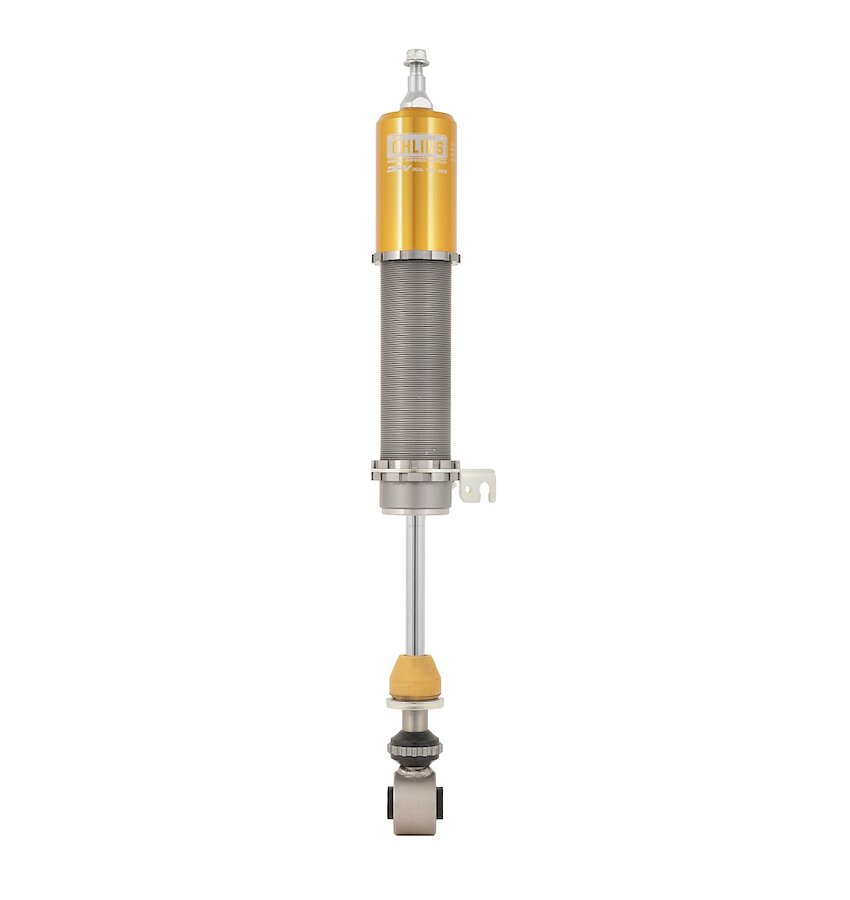

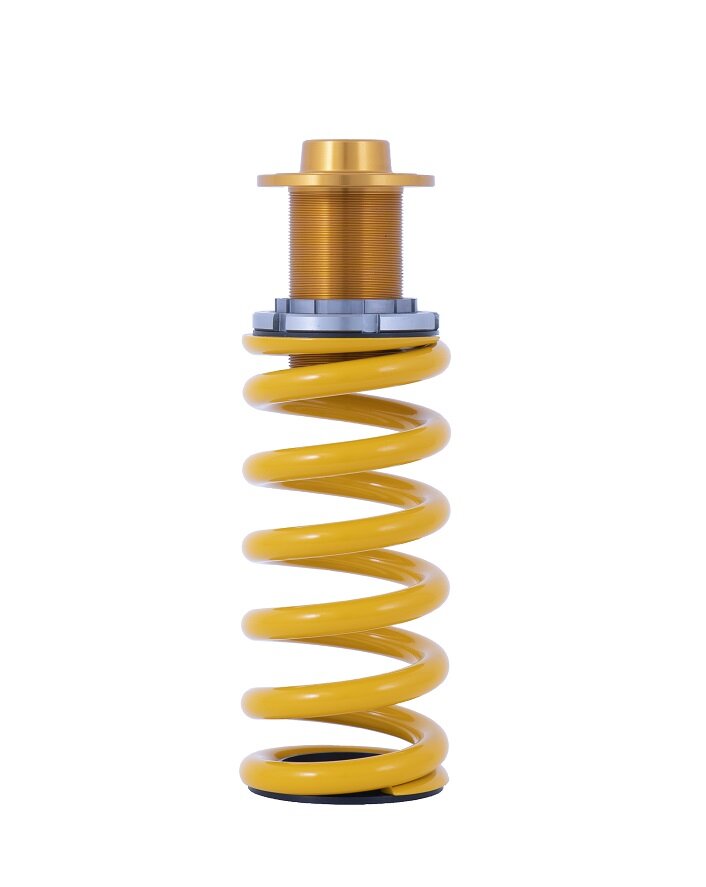

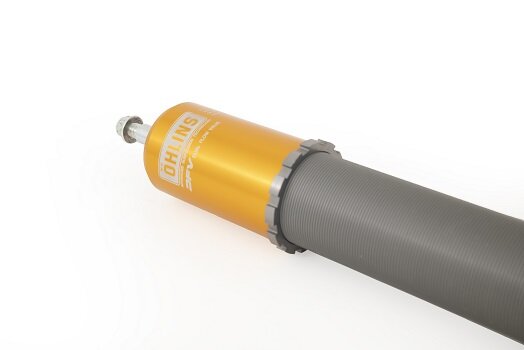

Features Rear:
- Conventional Shock Absorber
- Compression and rebound damping with one adjuster
- Spring preload adjuster
- Separate ride height adjustment
- Approx. 20 - 30 mm lower than standard with recommended setup
- Spring rate 140 N/mm
- Use with original top mounts

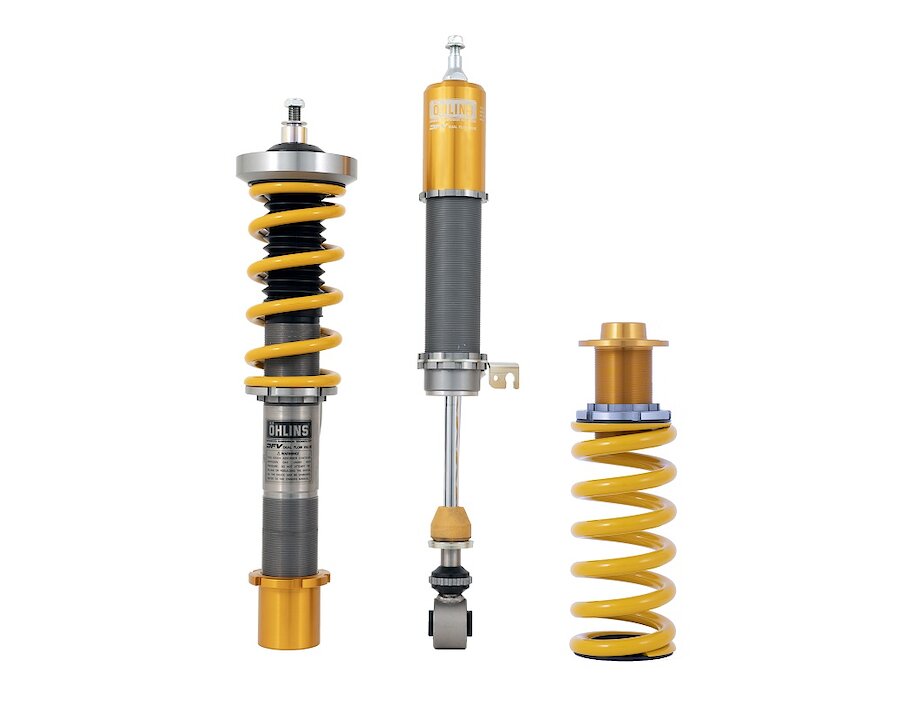

Purchased Parts Package:
- Coil over kit incl. springs and mounting parts
- C-Spanner (for spring preload adjustment)
- Owners manual and mounting instruction
- Sticker set
EDC Cancellation Kits:
- Öhlins EDC Cancellation Kit, BMW 1-serie: part no: 35020-03
- Öhlins EDC Cancellation Kit, BMW 3-serie: part no: 35020-30
Cancellation kits are not included and need to be ordered separately.
Additional Options:
For hybrid vehicles, the use of springs with higher spring rate on the rear axle is recommended. These springs are not included and must be ordered separately with part no. 48010-55. There is currently no TUEV certificate provided for the use of these springs.
Fits the following vehicles
-
Alpina B3, B3S (F30), 2013 – 2019
- Type: F30
- TÜV certificate
- Manufacturer confirmation (SUI)
- GOCA (BE)
-
BMW 1-Series (F20, F21) incl. xDrive, 2011 – 2019
- TÜV certificate
- Manufacturer confirmation (SUI)
- GOCA (BE)
-
BMW 2 Series (G42) incl. xDrive, 2022 –
- Type: G42
- TÜV certificate
- Manufacturer confirmation (SUI)
- GOCA (BE)
-
BMW 2-Series (F22, F23) incl. xDrive, 2013 – 2021
- TÜV certificate
- Manufacturer confirmation (SUI)
- GOCA (BE)
-
BMW 3-Series (F30, F31) incl. xDrive, 2012 – 2017
- TÜV certificate
- Manufacturer confirmation (SUI)
- GOCA (BE)
-
BMW 3-Series (G2x) incl. xDrive, 2019 –
- TÜV certificate
- Manufacturer confirmation (SUI)
- GOCA (BE)
-
BMW 4-Series (F3x) incl. xDrive, 2013 – 2020
- TÜV certificate
- Manufacturer confirmation (SUI)
- GOCA (BE)
-
BMW 4-Series (G2x) incl. xDrive, 2020 –
- TÜV certificate
- Manufacturer confirmation (SUI)
- GOCA (BE)
